Cargo Duo
Load capacity 50 Kg
Powder coated frame grey

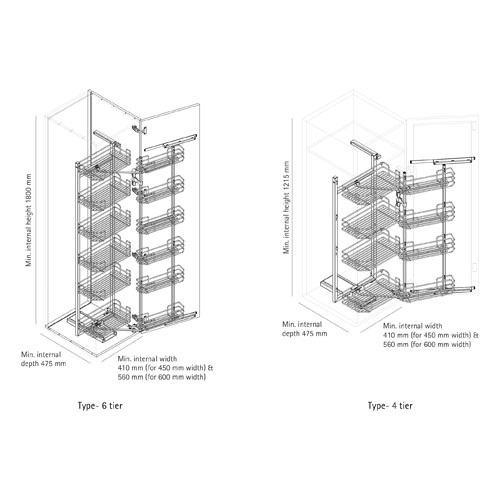

Cabinet width 450 & 600mm
Minimum internal carcass depth 500mm
Use 110° OR 165° hinges, for easy access
Set Comprises:

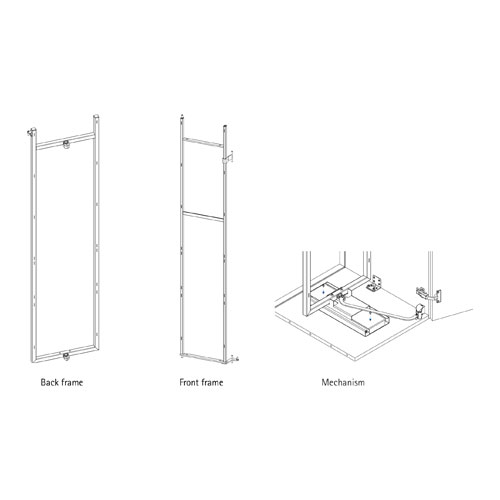

Mechanism (which contains back frame, front frame & mechanism)
Cargo Duo Basket Set (Door & Cabinet basket) as per no. of layers
Description
Description
Soft Close System & Pull Out mechanism of European Origin
Swivelling Pull out equipped column mechanism (reversible) with 8 or 12 wire bottom baskets
Pull out shelf is pulled outward when door is opened
As weight of the frame is all down to the bottom cabinet, no sagging or influence of weight on hinges
Door & pull out shelf ensure full use of enormous space available
Can be used as left hand & right hand unit
Can also be used for 2 door units (900 or 1200mm) without central panel
Stainless steel pull out baskets
For hook assembly in the pull-out frame
Chrome-plated Stainless steel basket
10 years free replacement warranty against rusting

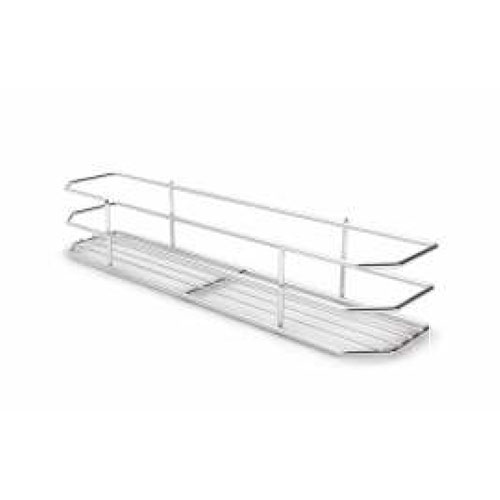

Stainless steel door shelf baskets
For hook assembly in the door frame
Chrome-plated Stainless steel basket
10 years free replacement warranty against rusting
