Pull-out units
Lineabox Finishes: Stainless steel, Champagne, Titanium, White
Description
Description

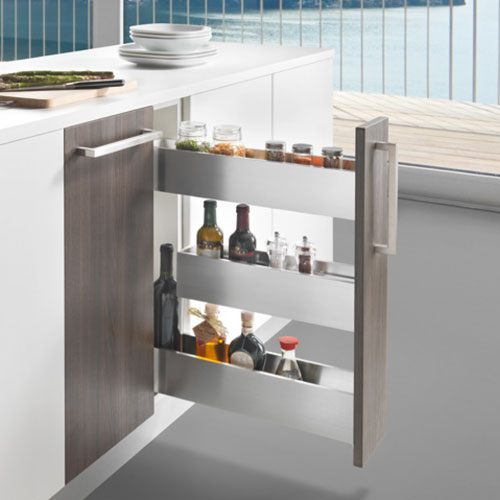

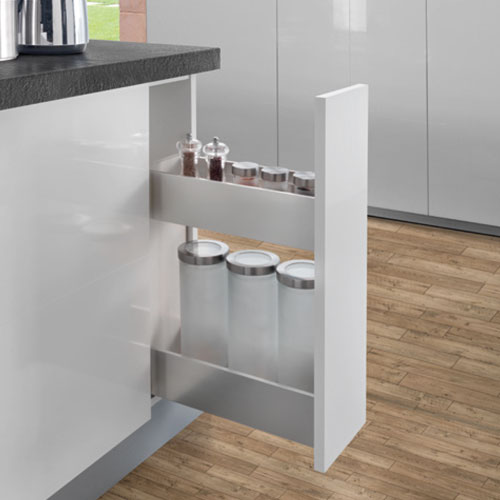

Pull-out units for the internal organization of kitchen storage units and wall cabinets.
Completely preassembled, easy and intuitive to mount, they transform even the smallest spaces into useful containers for bottles and spice jars.
Pull-out units – Storage unit and wall cabinet 300 mm
Kit consists of:
2 Futura runners 6555, full-extension, 500 mm length, to be fixed to the right side or the leftside of the cabinet
1 Shelf runner 65559, 500 mm length, to be fixed to the bottom of the cabinet
Screws for wooden frontal ø 4 x 35 mm
2 fully assembled Lineabox drawers, premounted on a frame
Technical features:
Depth, vertical and sideways adjustment with the runner fixing clips
For cabinets with side thickness min. 15 mm max. 19 mm
Pull-out units – Storage unit and wall cabinet 150 mm
Kit consists of:
2 Futura runners 6555, full-extension, 500 mm length, to be fixed to the right side or the left side of the cabinet
Screws for wooden frontal ø 4 x 35 mm
2 fully assembled Lineabox drawers, premounted on a frame
Technical features:
Depth, vertical and sideways adjustment with the runner fixing clips
For cabinets with side thickness min. 15 mm max. 19 mm
Accessories:
Central drawer, 350 mm length
