Wind is characterised by compactness and elegant design.
Combining the highest levels of performance with smooth and perfectly
controlled movement, Wind is small, unobtrusive and elegantly designed.
This compact lift system has strong functional appeal and takes up a
minimum of valuable storage space.
Wind is versatile and suitable for a vast range of furniture applications:
office furniture, kitchens, bathrooms, living- and bedroom furniture.
With an optional carrier, Wind can be used in corner cabinets and for doors
of large weight and dimensions.
This system incorporates a soft close mechanism for decelerated closing
or the Push self-opening system for handle-less doors. Wind is available
in numerous attractive finishes.

Technical information

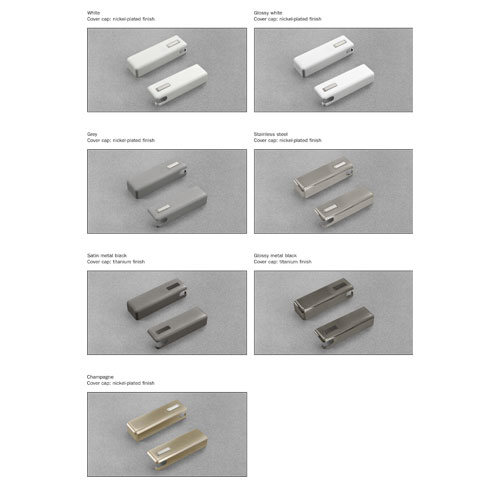

Colours of the cover cap : White, Glossy white, Stainless steel, Grey,

Champagne, Satin metal black, Glossy metal black

Flap door lift system fixed to the cabinet sides.
Drilling of the door ø35.
13 mm deep cup.
85° opening with stop device (premounted).
94° opening without stop device.
Possible drilling distance on the door (K): from 3 to 7 mm.
